IE-45 Scope

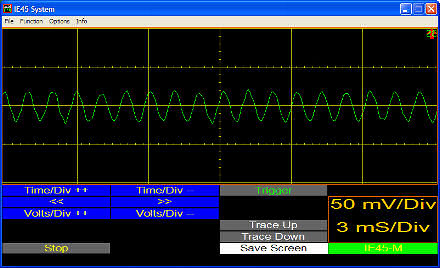

The Scope function provides a standard, XY (Channel 1 vs. Channel 2), and dual trace (Channel 1 and Channel 2) oscilloscope which can be used to view wave forms. Amplitude and frequency can be scaled. There is also an “auto scaling” feature. The display can be frozen, and parts of the wave form can be analyzed. Scope is for audio frequencies only (20 Hz to 20 KHz).
